TIFR-ARIES Multi-Object Optical to Near-Infrared Spectrograph (TA-MOONS)

Gallery

Image 3
TA-MOONS facility poster
Image 1

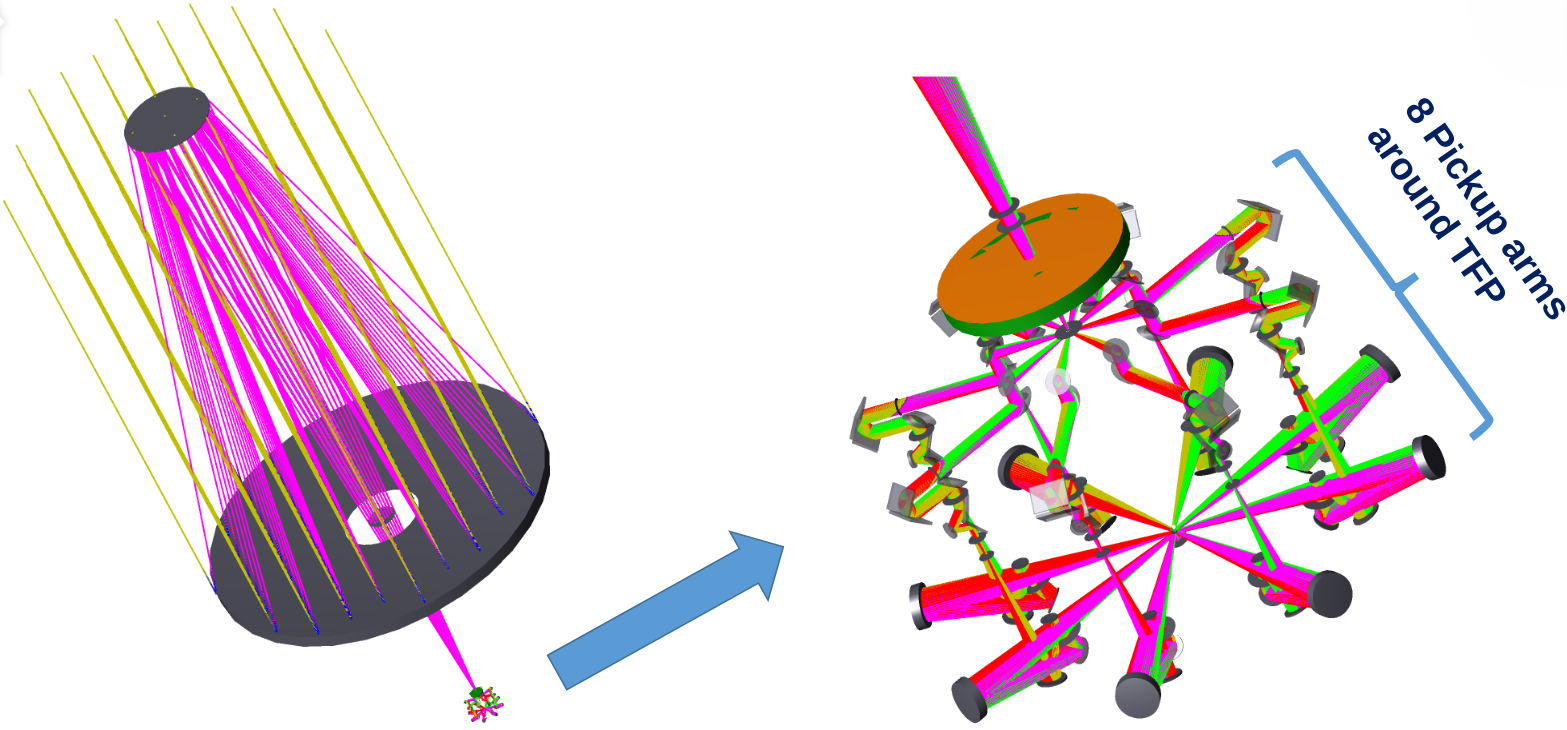

TA-MOONS Front Optics with Telecentric Focal Plane Arrangement
Image 2

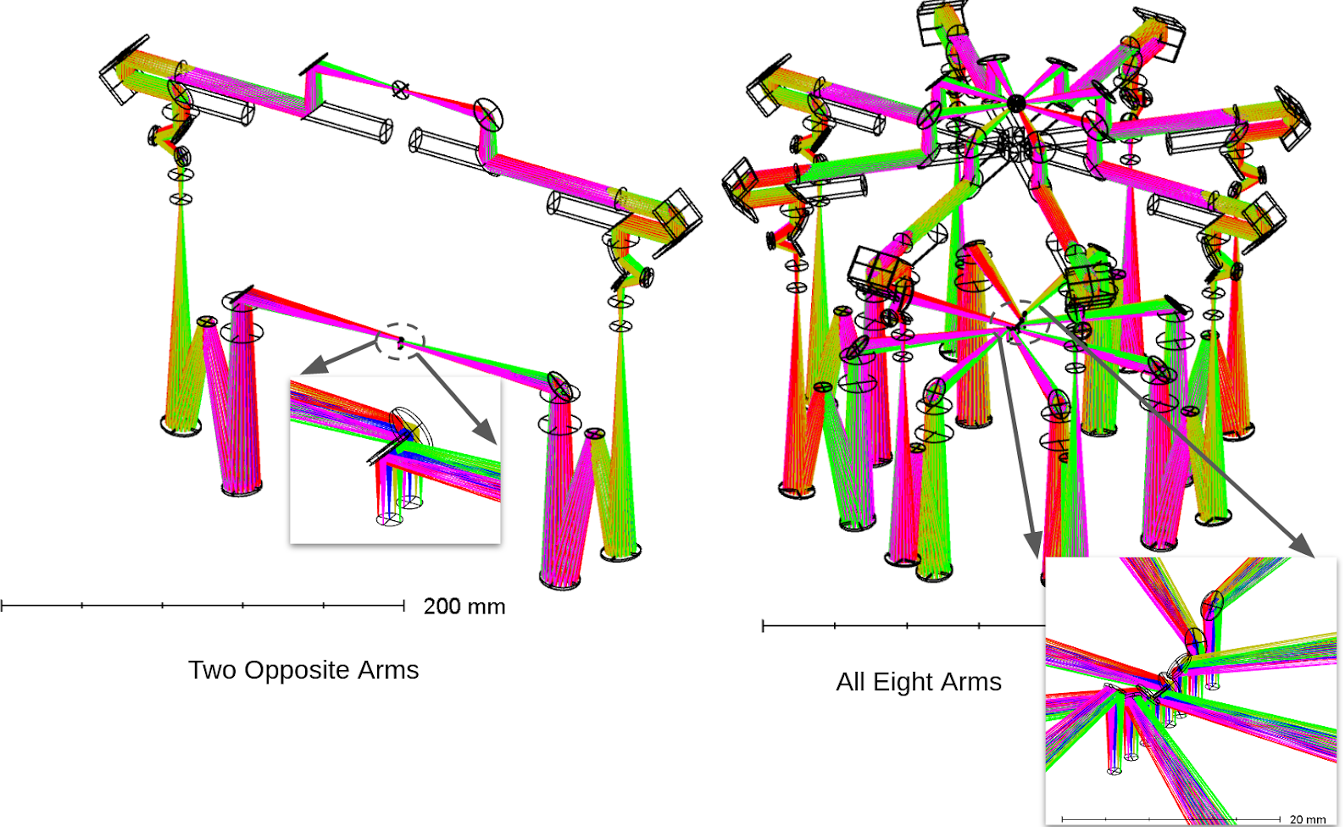

On the left for clarity shows the front optics design with just two opposite arms. The figure on the right shows the Zemax model of all the eight arms arranged in a circle around the instrument axis. The zoom-in of the slit mirror arrays which shape the linear slit are shown as insets in the respective diagrams above.
Image 3

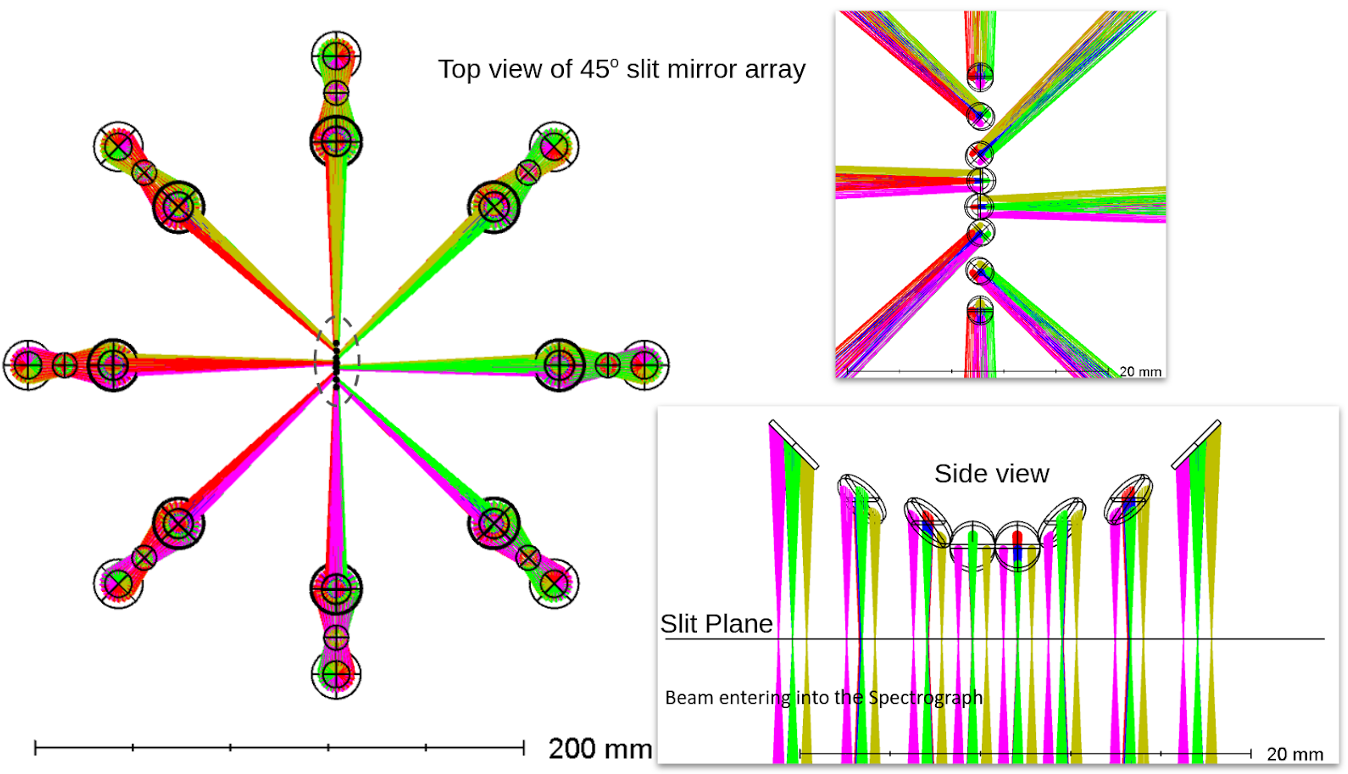

Shows the top view of the tiny 45 degrees slit mirror array. The side view is shown in the bottom right figure.
